Hindustan FRP

Structural Engineering Data

Technical Specs & Data Sheets

Official engineering datasheet for Hindustan FRP. Review nominal diameters (6mm-32mm), weights, ultimate tensile strengths, bond ratings, and code compliance checklists.

Tested Parameters.

Measured engineering traits that exceed traditional steel structural criteria.

1100+
MPa Ultimate Tensile Strength

Delivers double the tensile resistance of high strength carbon steel rebars, establishing a high structural safety factor.

46 GPa
Modulus of Elasticity

Engineered to behave linear-elastically up to structural failure, designed in full compliance with ACI 440 deflection criteria.

>70%
Fiber Glass Content
10+ MPa
Minimum Concrete Bond
IS 18256
IS 18256:2023 Grade Rebars

Manufactured and tested strictly as per the definitive national standard for structural composites.

Dimensional Data & Strength Limits

Diameter (mm)
Nominal Area (mm²)
Linear Weight (kg/m)
Min Tensile Strength (MPa)

6 mm

28.27

0.058

1150 MPa

8 mm

50.27

0.098

1150 MPa

10 mm

78.54

0.116

1100 MPa

12 mm

113.10

0.220

1100 MPa

16 mm

201.06

0.395

1000 MPa

20 mm

314.16

0.620

950 MPa

25 mm

490.87

0.960

850 MPa

32 mm

804.25

1.620

750 MPa

Physical & Thermal Specifications.

Chemical, thermal, and material properties supporting long-term concrete stability.

Material Composition

Primarily composed of high-strength Boron-free E-CR glass fibers bound in a high-grade chemical-resistant epoxy resin matrix, providing maximum resistance to alkaline cement environments.

Thermal Coefficient

Longitudinal CTE is 9.0 x 10^-6 /°C, matching concrete expansion rates to eliminate thermal shear stress. Transverse CTE is 22.0 x 10^-6 /°C, maintaining internal structural consistency.

Electrical Insulation

GFRP is completely dielectric, offering an electrical volume resistivity greater than 10^12 ohm-cm. This prevents galvanic loop currents and track-current leaks in heavy rail tunnels.

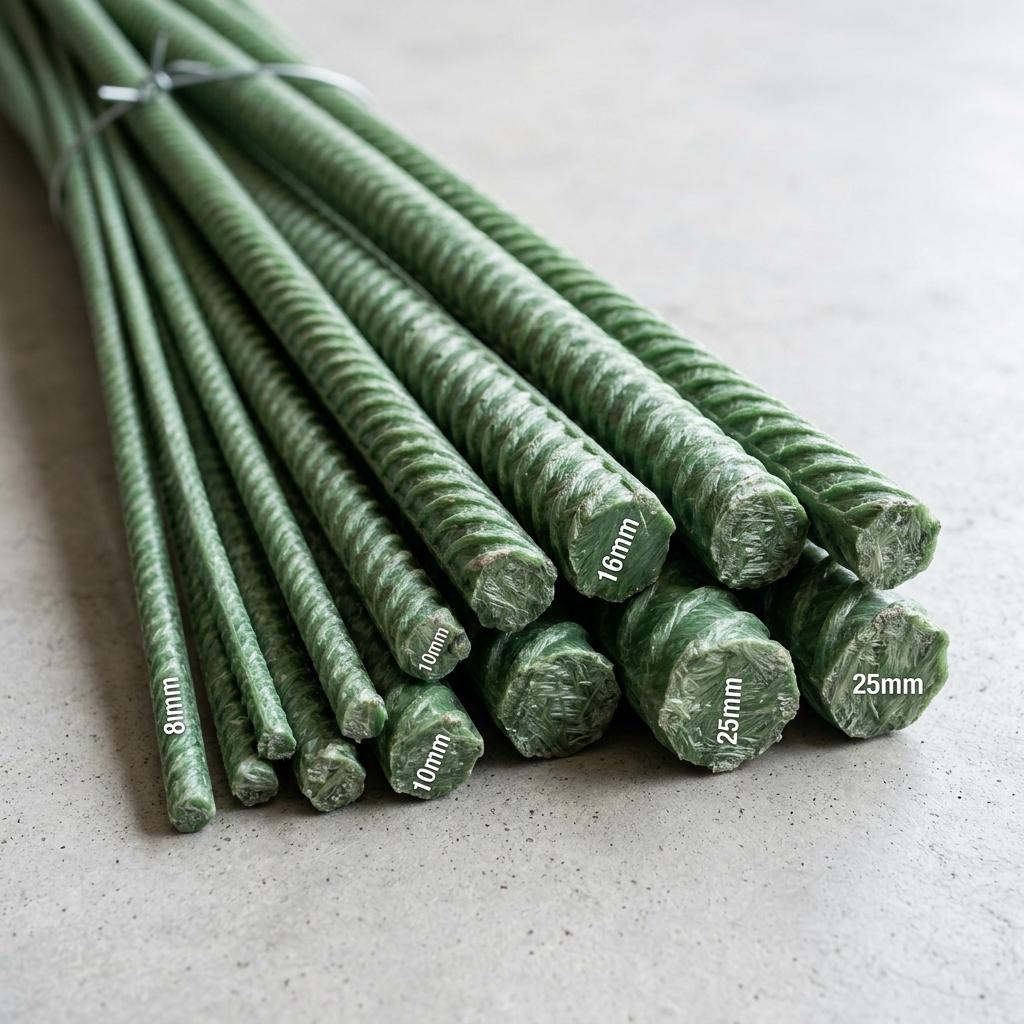

GFRP ribbed bar

Product Engineering

GFRP Ribbed Bar Diameters & Profile

Technical FAQ.

What standard testing codes govern GFRP rebar parameters?

Our composite rebars are designed and tested according to ASTM D7957 (Standard Specification for Solid Round GFRP Bars for Concrete Reinforcement) and are designed to IS 18256:2023 specification.

What is the shear strength of GFRP rebar?

GFRP rebar features a transverse shear strength exceeding 150 MPa, in compliance with ASTM D7617 test criteria. This ensures adequate resistance to lateral forces inside the reinforced concrete element.

How does GFRP bond strength with concrete compare to steel?

Due to the external spiral-wound fiber wrap and sand-coating texture, GFRP bond strength exceeds 15 MPa, which matches or exceeds standard deformed steel rebars, preventing slippage inside the concrete matrix.
